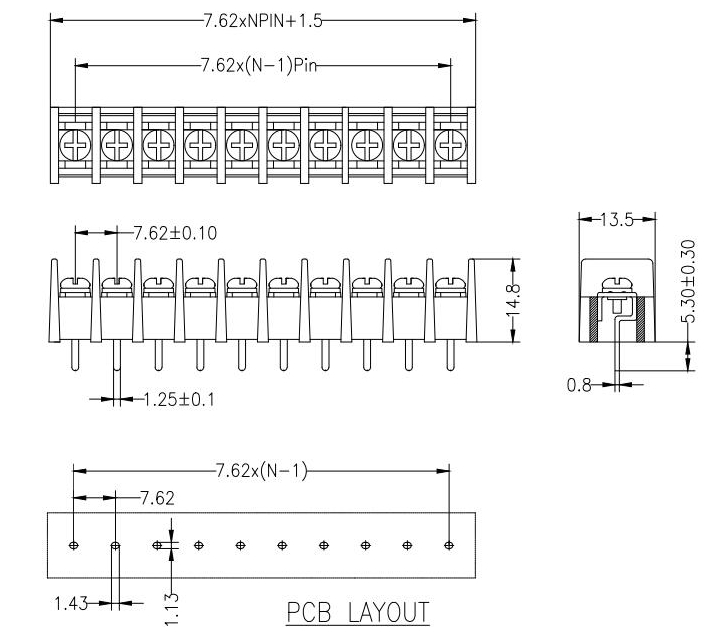

技術參數設計圖紙
| 材質及電鍍 Material | ||
| 螺絲 Screws | M3.0 Steel Ni plated | |
| 焊腳 Pin Header | Copper alloy，Sn plated | |
| 塑件 Housing | PA66，UL94V-0 | |
| 電氣性能 Electrical | ||
| 參考標準 Standard | UL | IEC |
| 額定電壓 Rated voltage | 300V | 250V |
| 額定電流 Rated current | 15A | 17.5A |
| 使用線徑 Wire range | 22-14AWG | 1.5mm2 |
| 接觸電阻 Contact Resistance | 20mΩ | |
| 絕緣電阻 Insulation resistance | 500MΩ/DC500V | |
| 耐電壓 Withstanding voltage | AC2000V/1Min | |
| 一般參數 Other Data | ||
| 間距/極數 Pitch/Poles [mm]/[P] | 7.62/2-26 | |
| 工作溫度 Operating temperature [℃] | -40℃~+105℃ | |
| 扭矩 Torque | 5.10kgf-cm/0.5Nm/4.43Lbin | |
