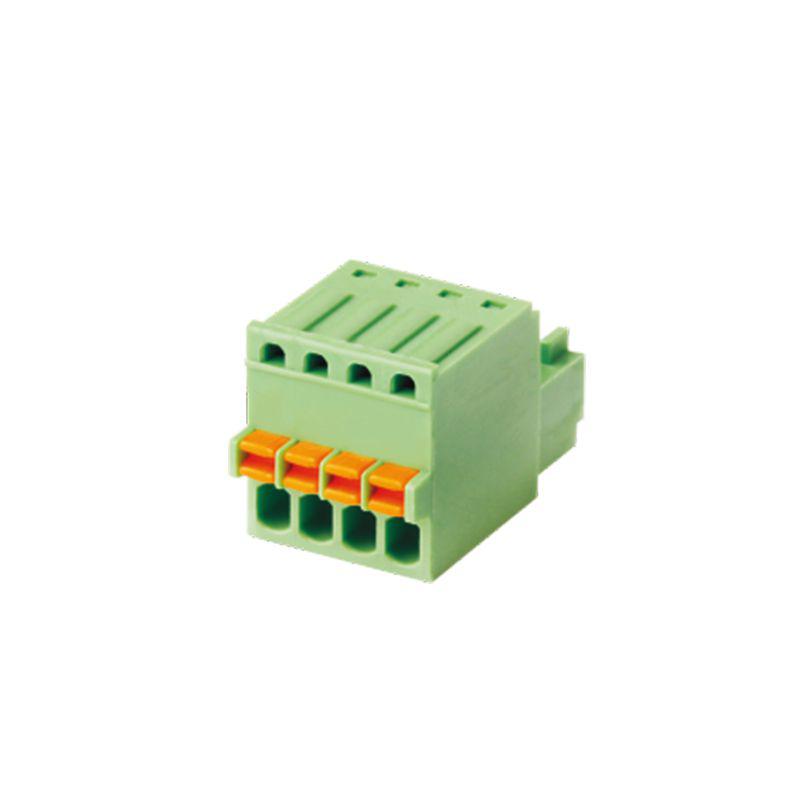

插拔式連接器
額定電流: 5 A
額定電壓: 150 V
使用線徑: 26-20 AWG
間距: 2.5 mm
接線方式: 直插式彈簧連接
技術參數設計圖紙
技術數據-UL/CUL | |||
等級 Use Group | B | C | D |
額定電壓 Rate Voltage [V] | 150 | - | - |
額定電流 Rated Current [A] | 5 | - | - |
接線范圍 Wire Range [AWG] | 26~20 | ||
耐電壓 Dielectric Voltage-Withstand | 1.3KV | ||
技術參數-IEC | |||
過電壓類別 Overvoltage Category | III | III | II |
污染等級 Contamination Class | 3 | 2 | 2 |
額定電壓 Rated Voltage [V] | 100 | 160 | 320 |
額定電流 Rated Current [A] | 6 | 6 | 6 |
額定沖擊電壓 Impulse withstand voltage [KV] | 1.5 | 2.5 | 2.5 |
導線截面積[硬/柔] Conductor cross section [mm2] | 0.2-0.5 | ||
材料 Material | |||
絕緣材料 Insulation Material | PA66 | ||
阻燃等級 Flame relardant rating | UL94V-0 | ||
導體材料 Conductor Material | Copper alloy | ||
導體表面鍍層 Plating of conductor surface | Sn plated | ||
一般參數 Other Data | |||
間距/極數 Pitch/Poles [mm]/[P] | 2.54/2-24 | ||
剝線長度 Stripping Length [mm] | 7~8 | ||
螺絲/扭矩 Screw/Torque(Max)[N.m] | / | ||
工作溫度 Operating temperature [℃] | -40~+105 | ||
焊錫溫度 Soldering temperature | / | ||
引針尺寸 Pin dimensions [mm] | / | ||
PCB板孔徑 PCB Hole Diameter [mm] | / |
